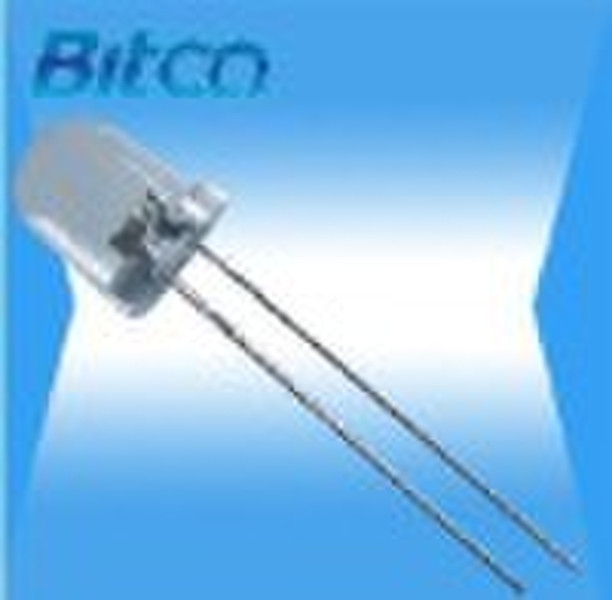

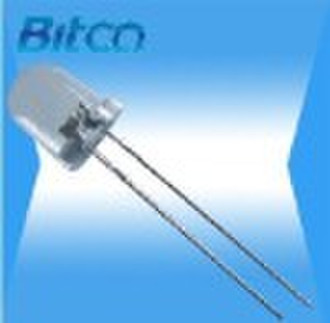

8MM ROUND LED lamps

8MM ROUND LED lamps Model:BT80XC3-XX-UP800 Features: 1.Chip material:AlGAlnP/InCaN 2.Lens Appearance:Water Clear/ White Diffused 3.Low Power consumption,High efficiency 4.Versatile mounting on P.C. Board or Panel General Characteristics Power Dissipation:70(110)mW Forward Current:30mA Peak Forward Current:150mA Reverse Voltage:5V Operating Temperature:-40 80°C Storage Temperature:-40 85°C Soldering Temperature:260°C(for 5 seconds) Luminous Intensity: BT80RC3-XX-UP800 RED 610-640nm 1.8-2.6V 2000-6000mcd 20deg BT80YC3-XX-UP800 Yellow 580-595nm 1.8-2.6V 2000-6000mcd 20deg BT80GC3-XX-UP800 Green 510-540nm 2.8-4.0V 8000-16000mcd 20deg BT80BC3-XX-UP800 Blue 450-475nm 2.8-4.0V 2000-6000mcd 20deg Applications: Illumination/Instruction/Decorate/Car/Advertizing sign
